Article Intro: An earring box is usually judged by its lid and its lining, and it is usually lost at the hole. A pair of studs is held by a post passing through a pierced card or a die-cut slot, and that one interface sets two absolute dimensions against each other - the post and the opening - while the board around them is chosen for reasons of its own. This guide follows the interface from the drawing to the first sample, and it leaves box-format selection to the articles that already compare formats.

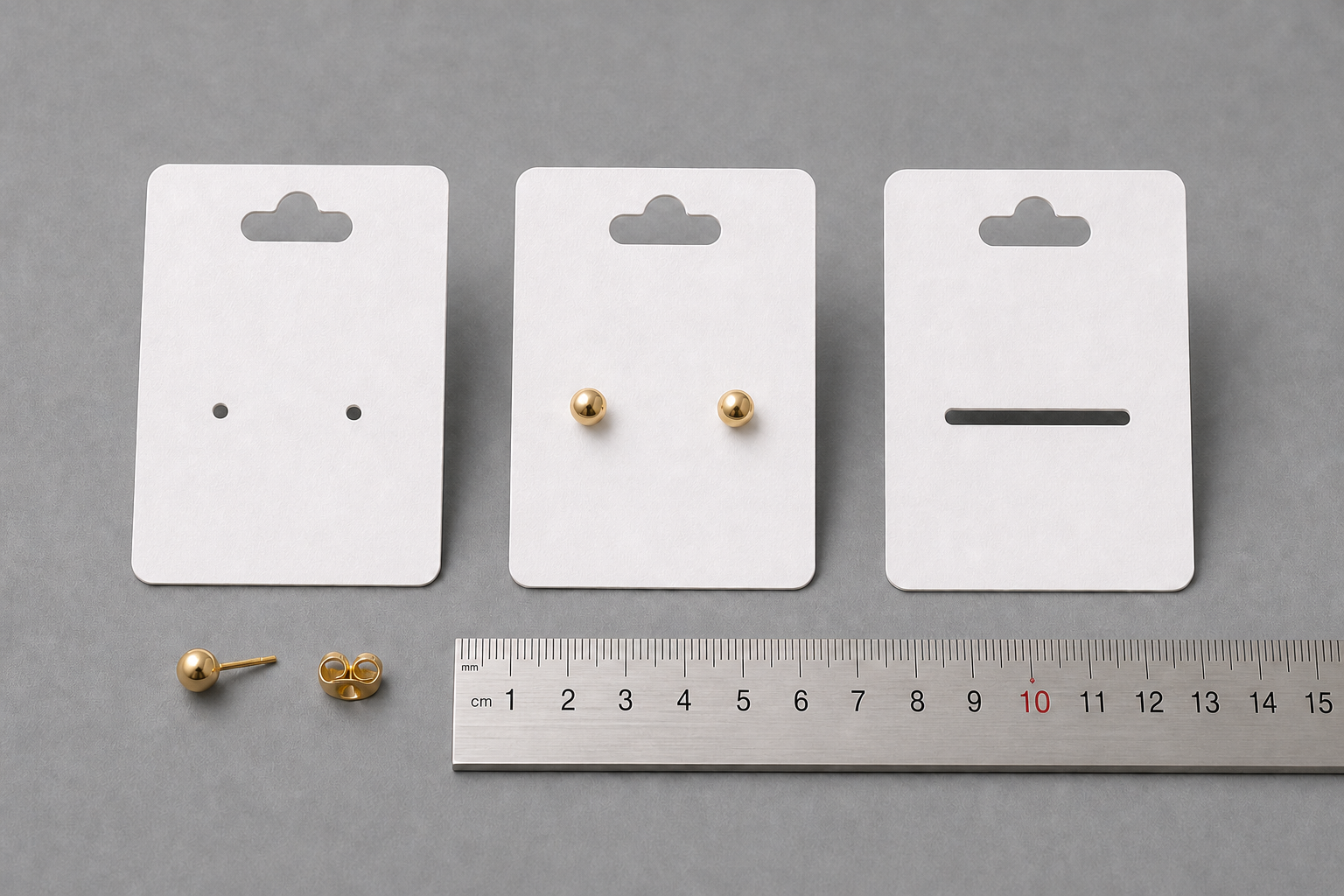

One card stock, three hold states: two punched holes, those holes carrying a pair, and a die-cut slot.
An earring box is a container whose retention comes from a pierced, slotted or moulded interface rather than from a cavity that surrounds the item. A ring sits in a cut recess, a chain lies in a tray, and a pair of earrings hangs from a hole. That difference decides where the engineering effort belongs.
Quick Answer: Whether a pair stays on its card is set by the relationship between post diameter and hole diameter, and by the relationship between card thickness and the usable length of the post. Neither is a lining question, and neither can be repaired by a better insert once the card has been punched.
Two clarifications belong here. First, the pierced card is part of the finished article a buyer receives, not an accessory added afterwards, so its dimensions belong on the same drawing as the box. Second, the outer format - lidded, book, drawer, pouch - is a separate decision, because the hole behaves the same way whatever surrounds it.
Every retention system has one place where the outcome is settled. On a hinged box it is the hinge line; on a pierced card it is the circumference of the hole, where a metal post meets a cut paper edge.
That edge is not a smooth bore. A punch shears the board and leaves a wall with a slight taper and a compressed rim, and the wall's height is exactly the caliper of the board. Grip therefore comes from a very short length of contact - a few tenths of a millimetre on a thin card - which is why the same earring can feel secure on one card and loose on another that looks identical.
The practical consequence is that the pierced interface has to be specified, not inherited. A card chosen because it prints well and a card chosen because it holds a post are different cards, and the difference is measured in tenths of a millimetre rather than in appearance.
A post is a shaft and a punched hole is a bore, so the pair belongs to the same family of problems as any other shaft in a bore: what matters is not the nominal size but the deviations allowed to occur around it.
ISO 286-1, the ISO code system for tolerances on linear sizes, exists to express precisely that - a nominal size with an upper and a lower deviation, and a fit chosen deliberately rather than inherited from habit. Applied to a given post gauge and a given punch, it turns a vague requirement into a question with an answer: is the intended condition a clearance fit, where the post passes freely and a backing does the holding, or an interference fit, where the board itself grips?
Both are legitimate and they fail differently, which is why the drawing has to pick one. A clearance fit driven past its limit drops the earring; an interference fit driven past its limit bows the card and enlarges the hole in use, so the pair loosens gradually instead of falling at once.
The chain then runs outward from the hole. Card caliper, measured under a stated pressure, comes next; above the card sits the clearance to the lid, and above that the internal depth of the box. Each link takes room that the post needed, and on a shallow box the last link is the one that runs out.
Loose earrings are reported as a packing fault, and by then the cause is four steps upstream. The four paths below cover most of what reaches a buyer as a pair that will not stay on the card.
Path | What is happening | How it is reported |
|---|---|---|
Hole too large | A clearance fit is used where the board was meant to grip | The studs work loose inside the box |
Card too thick | The usable post length is spent on the board | The backing will not seat on some units |
Post too short | The earring itself is at the limit of the design | Backings missing on arrival |
Backing too tight | Fitting bends the card and opens the hole | Loose after one fitting and removal |
The third path is the one buyers rarely accept, because it reads as a defective earring rather than a defective box. It is nevertheless a packaging decision: a design that works on a 0.8 mm card will not work on a 1.5 mm card with the same earring.
A pierced card does not clamp. Nothing closes on the post; the only force resisting removal is friction at the short wall of the hole, plus whatever the backing contributes on the far side. That distinction matters because friction depends on fit, surface and caliper, and it degrades as the hole wears.
Hold route | How it grips | Where it is wrong |
|---|---|---|
Pierced card | Friction on the punched wall | Heavy earrings or long posts |
Die-cut slot | Two edges pinching the post | Posts of varying gauge in one run |
Foam slit | Compression of the foam | Sharp or threaded posts |
Moulded cavity | Shape rather than friction | Short runs of one item only |
Each route also has a production signature. A pierced card is fast and cheap per unit, and its accuracy is the accuracy of the punch, which wears. A die-cut slot tolerates a range of post positions but not a range of post gauges. Foam forgives everything except a sharp edge, which it eventually cuts through. A moulded cavity is the most predictable and the least flexible.
Where the pierced hold pays off | Where it loads the programme |
|---|---|
Low unit cost and a fast first sample | Every new earring needs a new punch check |
Flat cards ship and store compactly | Hole wear has to be watched batch to batch |
Presentation reads as retail-ready | Long or heavy items still need a box behind it |
Easy to reprint without retooling | Grip cannot be tuned after punching |
Works across most stud and drop forms | Hoops and threaders fall outside its range |
A card holds by hanging, which means it needs the item's hanging point to be small and its body to be flat. When either condition fails, no amount of card engineering recovers the design.
A hoop is the clearest case. The ring is wider than the card, so the card has to grow to the hoop's diameter; at that size the pierced area is a small island in a large sheet, and the item's weight acts on a lever rather than on a point. A drop earring behaves similarly when its length exceeds the card, and a threader has no fixed hanging point at all.
Those items move to a box with depth: a shallow tray, a shaped cavity, or a slot that captures the earring by its body rather than its post. The handover point is worth stating in a brief, because the alternative - a bigger card - usually reaches the buyer as a bent one.
What this section is, and what it is not. The finding below comes from a peer-reviewed study on the bending stiffness of paper published in BioResources. It is a statement about paper and board, not a measurement of earring retention, and no figure from it is used here as a retention value.
The study reports that thickness, elastic modulus and bending stiffness change with fibre composition, with single- or multi-ply forming, and with drying conditions. What matters for a pierced card is the direction of those dependencies rather than any single number: stiffness is not a fixed property of a grade, and it moves when a mill changes furnish or drying.
Set that against the two jobs a card does. It has to be thick enough for the hole wall to grip a post, and stiff enough not to bow when a pair hangs from it. Those two jobs agree up to a point and then stop agreeing, because a thicker board grips better and resists bowing while consuming the post length that the backing needs.
The limit of the comparison should be stated plainly. A study of paper stiffness says nothing about friction between a plated post and a punched edge, and nothing about how a hole wears. It is used here only because it makes the caliper decision visible as a material property rather than a house habit, and because it shows that the card's behaviour will not stay constant across suppliers.
An earring card drawing is usually a shape, a print area and a hole position. Six further statements turn it into something a punch operator can hold to.
Item | What to state |
|---|---|
Hole size | A diameter with a deviation, not a punch reference |
Card caliper | The nominal thickness and the pressure it is measured at |
Post gauge | The wire range the hole is sized for |
Hold route | Which of the four routes the design intends |
Grain direction | Which way the board runs, because stiffness is directional |
Measurement | The two points checked on the first article, and with what |
Card caliper is the item most often left off, and it is the one that cannot be inferred. ISO 534, which specifies two methods for measuring the thickness of paper and board, exists because the number depends on how it is measured: a single sheet under a stated pressure reads differently from a stack. A drawing that names a caliper without naming the method has not named a caliper.
Grain direction belongs on the list for a related reason. A card cut across the grain and a card cut along it can share a caliper and still behave differently at the hole, because stiffness is directional in a way that thickness is not.
Item | What to agree |
|---|---|
Reference earring | The exact item and post the card is sized for |
Fit intent | Clearance or interference, stated in words |
Punch wear rule | When a punch is replaced rather than adjusted |
Board change rule | Whether a new board needs a new sample |
Acceptance | How the pair is handled to confirm the hold |
The last item decides whether a complaint records a fault or an unmet assumption, and it cannot be settled from a photograph. Handling a fitted pair is the only test that matches what a buyer does.
Can any card be punched to any hole size? The punch can be made, and the card may not support it. A hole small enough to grip a fine post can tear on a soft board, and a board hard enough to hold a clean edge may be too stiff to sit flat in a shallow box.
Does a thicker card always hold better? Up to a point. Thicker board gives the hole wall more length and more stiffness, and then it starts consuming the post length the backing needs. The useful question is which failure is being designed out, not which card is thicker.
Why do hoops need a different box? A hoop is wider than the card that would hold it, so the card grows until the pierced area is a small island carrying a lever. A box with depth supports the item by its body instead of its post.
Is a pierced card enough for shipping? As a holder, yes, within its range. As protection, no: the card locates the pair and the box protects it, and a card sent without a box behind it arrives with bent corners rather than loose earrings.
An earring box is a pierced interface inside a container, and the interface is where the design is won. A post passing through a cut wall is a shaft in a bore, so the drawing needs a hole with a deviation, a caliper with a measurement method, and a decision about whether the board grips or the backing does. The published work on board stiffness adds a caution rather than a number: stiffness follows furnish, forming and drying, so a card that behaved on the first run is not guaranteed to behave on the next, and the caliper statement on the drawing is what keeps two batches comparable. State the fit, name the method, and handle a fitted pair before the sample is released.
