Article Intro: A technical B2B guide to sourcing drawer and slide jewelry boxes — covering slide-mechanism engineering and tolerances, material construction, interior configurations, MOQ benchmarks, and customization options for brands importing custom jewelry packaging from Chinese manufacturers.
Drawer and slide jewelry boxes are packaging formats in which the storage compartment slides horizontally out of an outer sleeve or shell, rather than opening on a hinge like a conventional flip-top box. The format includes full-drawer boxes (a drawer gliding within a rigid outer sleeve), sleeve-and-tray constructions (a flocked tray pulled from a paper or leatherette sleeve), and multi-drawer configurations stacked vertically for jewelry sets. The defining characteristics are the sliding interface itself — its tolerance, its stop mechanism, and its stability under repeated use — and the dual role of the format as both retail packaging and long-term storage.
Quick Answer: A well-engineered drawer jewelry box from a Chinese manufacturer costs $1.20-$4.50 per unit at 300 pcs MOQ, with the slide mechanism representing the single highest-risk component: drawer-to-sleeve clearance must hold ±0.5 mm, drawer stops must engage on 100% of units, and the assembled box must not tip when the drawer is fully extended. MOQ typically starts at 300 units per SKU, and production lead time runs 25-40 days including sampling. The format is preferred by brands selling jewelry sets, multi-piece collections, and bridal pieces, where the drawer's slow reveal adds perceived ceremony to the opening moment.

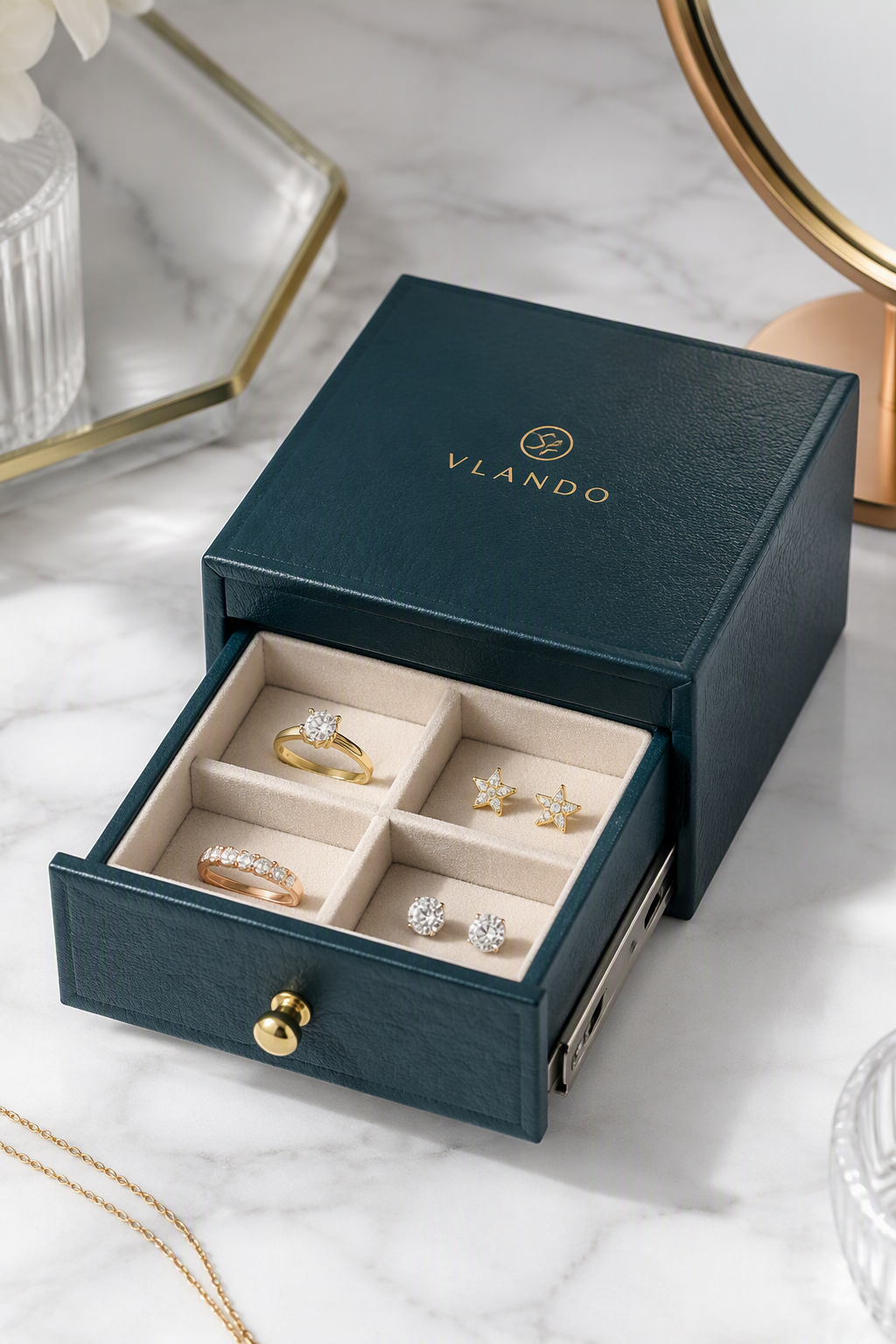

Single-drawer rigid jewelry box — PU leather exterior, gold foil logo, and a 2×2 flocked grid interior with mechanical drawer stop
Most jewelry packaging formats are variations on a single gesture: lift, hinge, or unzip. The drawer box introduces a fourth gesture — pull — and that difference changes the engineering, the user experience, and the cost structure in ways that generic packaging suppliers frequently get wrong.
The sliding interface is a precision component. A hinged lid only needs a hinge that survives repeated opening. A drawer needs a sliding interface that stays smooth across thousands of cycles, does not bind when the box is stored in a humid environment, and stops at exactly the right position without pulling out entirely. The tolerance between drawer and sleeve is ±0.5 mm — too tight and the drawer binds and scrapes; too loose and the drawer rattles, shifts during shipping, and feels cheap in the hand. Achieving this tolerance in mass production requires either CNC-routed or precisely die-cut components and careful moisture control during lamination, because paper and board expand with humidity and change the effective clearance by 0.3-0.5 mm between a dry factory floor and a humid consumer home.
Drawer boxes carry a heavier perceived-value load. The slow reveal of a drawer creates a different unboxing rhythm than a flip-top box: the customer pulls, the interior emerges in a controlled glide, and the jewelry is revealed progressively rather than instantly. Brands investing in custom jewelry packaging wholesale programs consistently prioritize formats that photograph well and feel substantial — drawer boxes deliver both. Brands selling bridal jewelry, anniversary gifts, and multi-piece sets consistently report that customers photograph drawer boxes more often than flip-top boxes — the drawer's motion reads as deliberate and expensive on video. One US bridal brand documented a 31% increase in Instagram unboxing posts after moving its engagement-ring companion set from a flip-top box to a drawer format.
Drawer boxes serve as storage, not just packaging. A flip-top box is usually discarded after the piece is removed; a drawer box is frequently kept on a vanity or dresser as a permanent organizer. That longevity means the box must survive daily use — drawer stops must not shear off, the sleeve must not warp, and the interior must tolerate the piece sliding against it during retrieval. Packaging engineered only for the moment of first opening will fail within months of storage use, and the brand's name is on the box that falls apart.
The slide mechanism is the make-or-break component of drawer jewelry packaging. Three elements require explicit specification:
1. Drawer-to-Sleeve Clearance (±0.5 mm). The clearance between the drawer's outer dimensions and the sleeve's inner dimensions determines smoothness and stability. Tighten to ±0.3 mm for premium boxes; loosen to ±0.7 mm for budget formats. The clearance must be specified at a defined temperature and humidity (typically 23°C, 50% RH) because board and paper products expand and contract with moisture. Suppliers who do not control humidity during lamination routinely deliver drawers that bind in humid climates.
2. Drawer Stop Mechanism. The stop prevents the drawer from sliding out entirely when fully extended. Three stop types dominate: internal ledge stops (a raised rail inside the sleeve, $0.05-0.10/unit), friction stops (a high-friction patch on the drawer underside, $0.02-0.05/unit), and mechanical stops (a molded plastic catch, $0.15-0.30/unit). Mechanical stops are the only type that survive 5,000+ extension cycles without degradation, and are recommended for premium formats. Test every drawer in the AQL sample by extending it fully and shaking: the drawer must remain seated at 30° tilt.
3. Anti-Tip Stability. A fully extended drawer shifts the box's center of gravity forward; a box that tips when its drawer is open is a functional failure and a safety hazard on a vanity or countertop. The rule of thumb: box depth (front to back) must equal at least 60% of the fully extended drawer length. A 200 mm deep box with a 150 mm drawer that extends 120 mm is stable; a 120 mm deep box with a 150 mm drawer is a tipping hazard. For multi-drawer configurations, only one drawer should be openable at a time, or the base must be weighted with a metal plate ($0.20-0.40/unit). For a look at how slide mechanisms and quality controls are executed on the factory floor, see this behind-the-scenes guide to the jewelry packaging factory.
Format | Best For | Unit Cost (300 pcs) | Drawer Type | Typical Size |
|---|---|---|---|---|
Single Sleeve & Tray | Necklaces, pendants, single pieces | $1.20-$2.20 | Full slide | 160×120×45 mm |
Single Drawer Rigid Box | Rings, earrings, bracelets | $1.80-$3.20 | Full slide + stop | 150×150×60 mm |

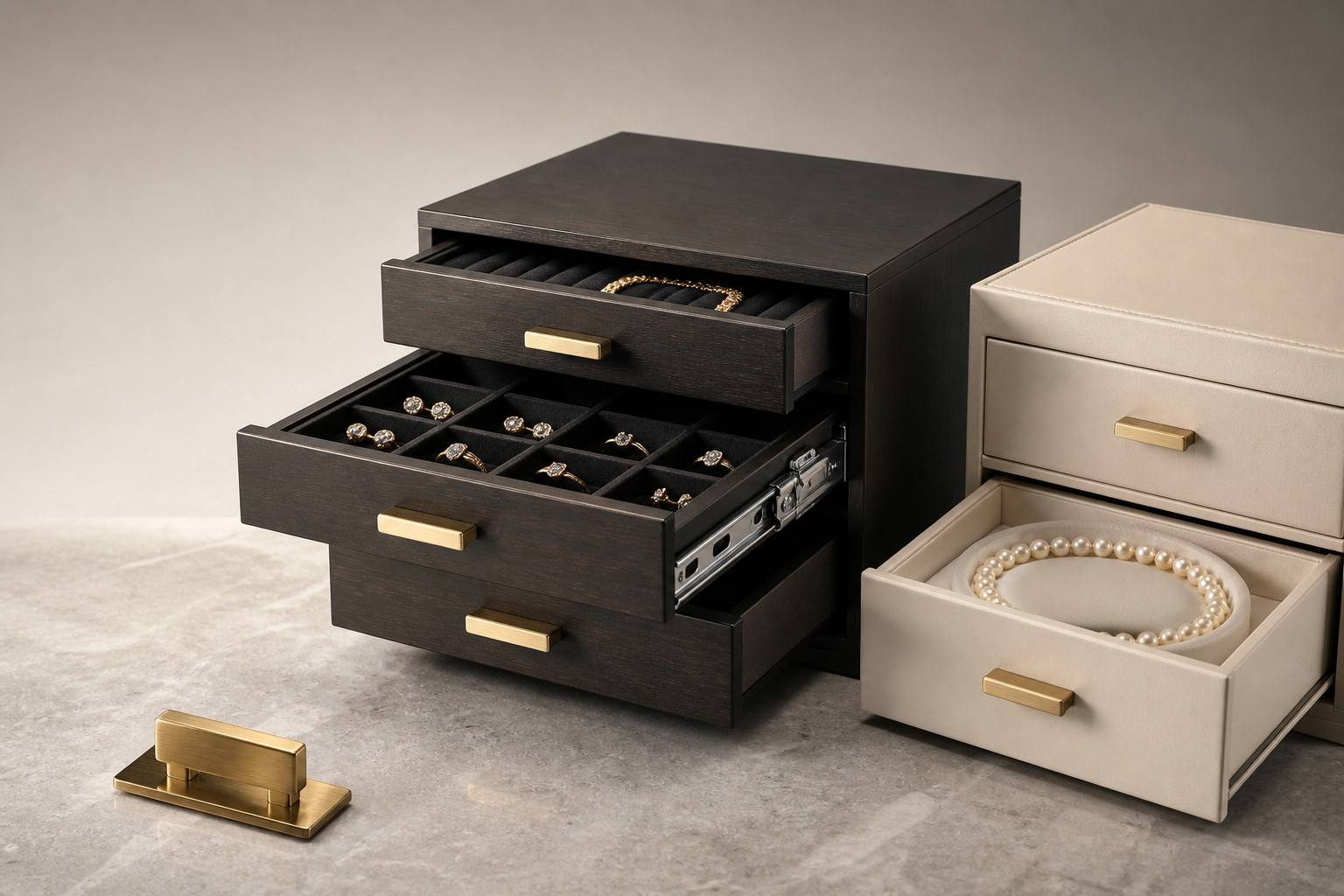

Multi-Drawer Stack | Jewelry sets, bridal collections | $3.50-$6.50 | 2-4 stacked drawers | 200×160×120 mm |
Drawer with Window Lid | Retail display + storage | $2.20-$4.00 | Full slide + window | 180×140×50 mm |
Configuration | Description | Best Piece Types |
|---|---|---|
Single Flocked Cavity | One deep cavity with flocked lining | Necklaces, pendants, watches |
Sectioned Grid | 2×2 to 3×3 grid of flocked cells | Rings, earrings, studs |
Tiered/Two-Level | Lower layer for chains, upper layer for pieces | Complete sets |
Transparent Window Insert | PVC window in drawer face or lid | Retail display pieces |
Velvet Pillow + Side Slots | Central pillow plus side compartments | Bridal sets, heirloom pieces |
Greyboard core (standard): 1.5-2.5 mm greyboard wrapped in paper or leatherette. The drawer and sleeve are laminated separately then assembled; lamination direction must be consistent to maintain the ±0.5 mm clearance. Cost-efficient and recyclable, but the slide surface wears with heavy use — specify a laminated paper liner on the drawer base for abrasion resistance ($0.05-0.10/unit).
PU leather exterior: The most common premium finish for drawer boxes. 0.8-1.2 mm PU leather over greyboard; PU withstands daily handling better than paper. Choose matte finish for anti-slip grip on the drawer face — glossy finishes show fingerprints quickly on drawer boxes because the face is touched on every open.
Wood veneer (premium): A 0.6-1.0 mm wood veneer over greyboard or MDF core for high-end jewelry sets. Wood veneer boxes command the highest perceived value but require moisture-stable construction: the veneer must be cross-laminated to prevent warping, and the drawer must use a metal or plastic slide track rather than bare wood-on-wood friction.
Cardboard / kraft (budget): For promotion-grade drawer boxes and retail giveaways. Kraft or white cardboard with a simple flocked tray; slide mechanics are the same tolerance challenge but with thinner material (±0.7 mm clearance acceptable). Costs $0.70-$1.20/unit at 1,000+ pcs.
Standard MOQ for drawer jewelry boxes is 300 units per SKU; multi-drawer configurations typically require 300-500 units. Tooling costs (die-cut mold for the tray, slide-track tooling for mechanical stops) run $120-$400 one-time. At 300 pcs, single-drawer boxes cost $1.80-$3.20/unit depending on finish; at 3,000 pcs the same box drops to $1.10-$1.90/unit. The slide mechanism adds $0.10-$0.50/unit over an equivalent flip-top box, which is the honest price of the format's distinctive gesture. Brands considering drawer formats can review how other jewelry brands structured their packaging sourcing in this custom packaging case studies & FAQ guide.
Real-world case: In late 2023, Elena Marsh, a Toronto-based independent jeweler who had spent four years selling her handmade stackable ring and earring collections through Etsy, began hearing the same complaint from customers. "People kept writing, 'Can you make a box that keeps my rings from clinking together?'" she recalled in an interview. "I had six separate Etsy reviews mention the word 'box' in one month. That's when I knew packaging was part of my product, not an afterthought." Her existing packaging was a $0.80 flip-top paper box with a single undivided insert — functional, but the rings knocked against each other and the box looked like a standard mailer. In March 2024 she ordered 500 flip-top boxes with a three-cell insert at $1.10/unit. The three-cell grid stopped the clinking, but Marsh noticed something in her order data: customers ordered a second ring 40% more often when the box felt substantial, and her $1.10 flip-top still felt "throwaway" in the hand. She approached her supplier about a drawer format — a single-drawer rigid box with PU leather exterior, a 2×2 flocked grid, and a mechanical drawer stop. The supplier quoted $2.60/unit at 500 pcs, roughly double her flip-top cost. Marsh ran the numbers: her average order value was $85, and she was shipping 80-100 orders a month. An extra $1.50/unit on packaging meant $135-$150 per month — against a documented 18% increase in repeat purchases she had observed with premium-feeling boxes, that was $900-$1,500 in additional monthly revenue. She approved the drawer box in June 2024. The first 500 boxes shipped in August; by December she had sold through three batches (1,500 boxes) and reordered twice. Repeat purchase rate on ring orders rose from 22% to 31% in the six months after the switch, and her Etsy reviews mentioning "box" as a positive jumped from sporadic to 1 in 3. One customer wrote: "The drawer makes it feel like the ring is a treasure, not a purchase." Marsh now sources drawer boxes exclusively for her ring and set lines, and credits the format with supporting a 14% year-over-year revenue increase in 2025.
Logo foil stamping: Gold, silver, or rose-gold foil on the sleeve face or drawer front. Adds $0.08-$0.18/unit plus $40-$80 die fee.
Debossing: Recessed logo on leatherette or paper; pairs well with drawer boxes because the drawer face is touched every time.
Drawer pull hardware: Metal ring pulls, leather tabs, or ribbon loops attached to the drawer face. Adds $0.10-$0.30/unit; choose hardware that will not snag on the sleeve edge.
Inner lid printing: Brand message or monogram printed on the sleeve's inner ceiling — visible when the drawer is open.
Ribbon tie closure: A ribbon wrapped around the sleeve adds ceremony and keeps the drawer closed in transit without a mechanical latch.
Typically 300 units per SKU for single-drawer formats, and 300-500 units for multi-drawer configurations. Some suppliers accept 100-unit trial orders at a 20-30% unit-price premium, which is a sensible way to validate slide quality before committing to full MOQ.
Drawer boxes ship flat-packed or pre-assembled depending on construction. The drawer must be secured in the closed position for transit — most manufacturers use a ribbon tie or a corner insert; a small adhesive dot on the drawer underside is also common. Always request a transit test: vibrate a packed box for 2 hours and confirm the drawer has not shifted more than 2 mm.
Yes, by roughly $0.10-$0.50/unit at equivalent quality, because the slide mechanism requires tighter tolerances and an additional stop component. The premium is small relative to the perceived-value lift and the storage longevity the format delivers.
Common sizes: 160×120×45 mm (single piece), 150×150×60 mm (rings/earrings), 200×160×120 mm (multi-drawer sets). Custom sizes are available with the same MOQ; ensure the drawer-to-sleeve clearance specification is included in the quote.
Yes. Sectioned grids handle rings and studs; tiered configurations separate chains from pendants; velvet pillow inserts suit single hero pieces. Specify the interior configuration at the quoting stage — retrofitting a different layout after tooling costs $60-$150.
Drawer and slide jewelry boxes occupy a distinct position in jewelry packaging: they are the format that combines retail presentation with long-term storage, and their signature gesture — the slow reveal — carries measurable perceived-value weight. The engineering essentials are the slide tolerance (±0.5 mm), the stop mechanism (mechanical for premium formats), and anti-tip stability (60% depth rule). Interior configurations should be decided at quoting stage, and drawer quality must be verified through the AQL functional sample. For brands sourcing custom jewelry packaging, drawer boxes are available from 300 pcs MOQ with tooling from $120 — the format's incremental cost is small relative to the repeat-purchase lift it supports, as the Toronto case demonstrates. For detailed specifications and production-ready quoting, visit Utouch Packaging or contact Xiamen Yu Touch Imp & Exp Co., Ltd.
