Article Intro: A technical B2B guide to sourcing travel and portable jewelry packaging — covering hard-case versus soft-roll engineering trade-offs, compartment architecture for mixed jewelry types, luggage-environment protection requirements, MOQ benchmarks, and customization options for brands importing from Chinese manufacturers.
Travel and portable jewelry packaging refers to containers engineered for jewelry transported outside the home — luggage, handbags, carry-on bags, and pockets — as opposed to retail packaging (presenting at the moment of sale) or storage packaging (protecting at rest). The category spans hard-shell cases, soft fabric rolls, zippered organizers, and multi-compartment pouches, defined by a single characteristic: they are used repeatedly, carried in changing orientations, and subjected to luggage compression loads that retail and storage packaging never encounter. For B2B buyers, travel packaging inverts retail priorities: durability over presentation, weight minimization over heft, impact resistance over unboxing drama.
The most effective travel jewelry packaging pairs a hard-shell exterior (ABS or EVA) with a soft fabric interior containing separate compartments for each jewelry type — ring slots, necklace channels, earring wells, and a zippered pouch area for loose pieces. Typical wholesale MOQ starts at 300 units per SKU, with per-unit costs from $1.20 for a basic drawstring travel pouch to $8.50 for a premium hard-shell case with CNC-cut foam interior and custom logo hardware. The single most important engineering decision is shell construction: EVA hard-shell cases at 3-5 mm wall thickness provide crush resistance up to approximately 25 kg of stacking force (enough for checked luggage), while soft rolls provide zero crush protection but 60-70% weight and volume savings. The choice between the two is a product-positioning decision, not a quality decision.

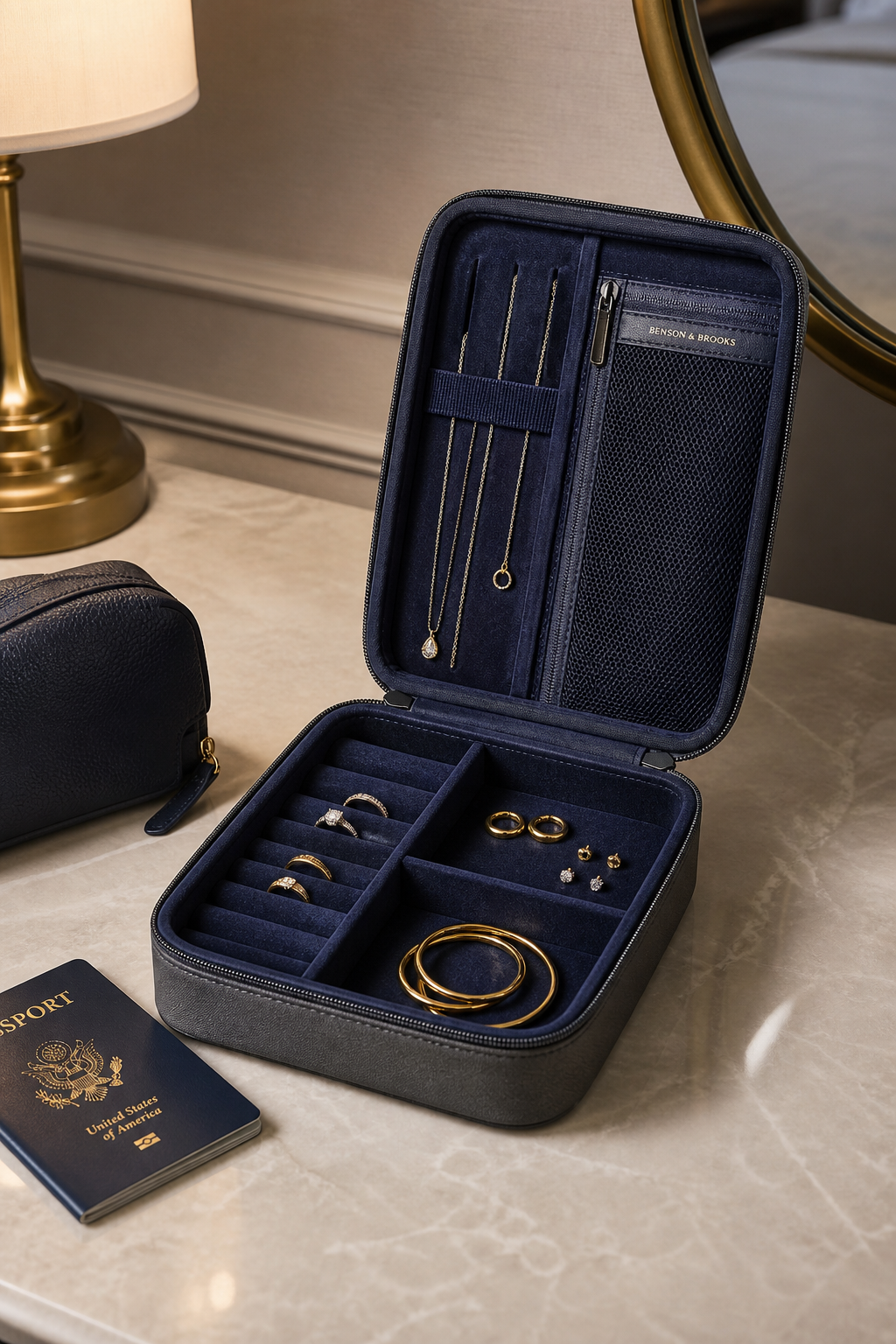

EVA hard-shell travel jewelry case with compartment architecture — necklace channel with elastic bands, ring slots, earring wells, and zippered mesh pocket engineered for all-orientation retention.
Travel jewelry packaging violates two assumptions that retail and storage packaging are built on, which is why generic jewelry boxes fail so completely in transit environments.
Travel packaging is used, not just presented. A retail box is opened once and kept or discarded. A travel case is opened and closed 50-200 times per year. Every component — zipper, hinge, clasp, partition — must be rated for thousands of cycles, not tens. A zipper rated for 5,000 cycles (typical retail quality) fails within 6-18 months of weekly travel use; travel-grade zippers are rated 10,000-20,000 cycles at $0.15-0.30 more per unit. Hard-case hinges likewise: retail paper or lightweight metal hinges rated for hundreds of cycles vs. reinforced steel rated for 10,000+. Component grades are non-negotiable in travel packaging specifications.
Travel environments are mechanically hostile. A checked suitcase experiences stack loading (up to 30-40 kg), aircraft-hold compression, temperature swings from -20°C to 40°C, and conveyor rough handling. Jewelry inside faces three risks: crush damage from external pressure (flat boxes cannot resist regardless of material), chain tangling from constant motion (demanding individual compartmentalization), and component separation — a clasp or earring back that works loose is lost permanently, so compartments must retain small components in any orientation.
Orientation variability compounds every constraint. Retail packaging is designed for one opening orientation — horizontal on a table. Travel packaging is opened in hand, on a hotel vanity, in an airplane seat, upside-down in a backpack. A compartment that spills when rotated 90 degrees is a defect. Compartment depth must exceed piece height by at least 50%, and closures must retain contents at any angle — the requirement that eliminates more candidate designs than any other.
Format | Best For | Unit Cost (Wholesale, 300 pcs) | Crush Protection | Weight/Portability |
|---|---|---|---|---|
Hard-Shell Case (ABS/EVA) | Fine jewelry, checked-luggage travel | $4.50-$8.50 | High (25-40 kg stack) | Heavy (150-400 g) |
Soft Fabric Roll (velvet/microfiber) | Multi-piece sets, carry-on travel | $2.00-$4.50 | None | Light (60-150 g) |
Zippered Pouch with Compartments | Day trips, gym bags, commuter use | $1.20-$3.00 | Minimal | Light (40-100 g) |
Modular Organizer Tray (fits luggage) | Business travel, long trips | $3.00-$6.00 | Medium (tray walls) | Medium (100-250 g) |
Drawstring Pouch (single-piece) | One piece, minimal travel | $0.50-$1.50 | None | Lightest (20-60 g) |
Three structural decisions define travel packaging performance:
1. Shell construction (hard cases). EVA at 3-5 mm wall thickness is the most common choice: 25-40 kg crush resistance, 20-30% lighter than ABS at equal strength, and molds into complex interior shapes without a separate liner. ABS at 1.5-2.5 mm offers higher rigidity and gloss but requires a fabric interior lining (adding $0.30-0.60/unit) and scratches more easily. Polypropylene is the budget option — lighter and cheaper, 40-60% lower crush resistance, a "plastic" feel that undermines premium positioning. Matrix: EVA for premium, ABS for business travel, PP for entry-level.
2. Interior compartment architecture. The standard layout: a full-length necklace channel (15-25 mm wide, elastic retention bands every 40-60 mm), 4-12 ring slots (elastic loops or foam slits sized to band width), 2-6 earring wells (8-15 mm diameter, minimum 15 mm depth), and a zippered mesh pocket for loose pieces. Compartment walls minimum 2 mm thick prevent cross-compartment migration. The most common defect is insufficient earring well depth — a post that protrudes hooks onto the closing flap.
3. Closure and retention systems. Three archetypes: zipper (most common, must be 10,000+ cycle travel-grade), magnetic flap (quick access, weaker under crush — fine for carry-on, risky for checked), and snap/clasp (strongest, slowest). For interior retention, elastic bands outperform velcro (which catches fabric and loses grip with lint). The zipper is the most-tested component — a 5,000-cycle test with 2 kg load belongs in the pre-shipment inspection protocol for any zippered travel product.
Hard-Shell Case: Maximum protection, premium perception, heaviest and most expensive. Best for: fine jewelry brands, checked-luggage travelers, gifting occasions.
Soft Roll: Excellent weight-to-capacity ratio, packable into irregular luggage space, zero crush protection. Best for: costume jewelry, carry-on-only travelers, multi-day trips.
Zippered Pouch: Most versatile, cheapest structured option, minimal protection. Best for: commuters, single-trip users, budget segments.
Modular Tray: Best organization-per-gram, integrates with luggage packing systems, medium protection. Best for: business travelers, jewelry salespeople, sample carriers.
Piece Type | Travel Risk | Required Feature | Specification |
|---|---|---|---|
Necklace (chain) | Tangling under motion | Full-length channel + elastic bands | Channel 15-25 mm wide; bands every 40-60 mm |
Ring | Band scratching, stone impact | Individual slots with soft walls | Slot width = band width + 1 mm; foam or flocked walls |
Earrings (studs) | Post damage, back loss | Deep wells with foam base | Well depth ≥ post length + 5 mm; foam bottom holds post tip |
Earrings (drops/hoops) | Hook bending, entanglement | Oversized wells with retention flap | Well diameter ≥ hoop diameter; flap prevents rotation |
Bracelet | Clasp loss, chain abrasion | Dedicated compartment or mesh pocket | Compartment with elastic anchor for clasp end |
Brooch/Pin | Pin puncturing interior, clasp opening | Pin-isolation channel + clasp recess | Channel 2-3 mm wide; pin tip isolated in foam pocket |
Drawstring travel pouch (flocked fabric): $0.50-$1.50/unit at 300 pcs MOQ; $0.30-$0.80 at 2,000+ pcs.
Zippered multi-compartment pouch: $1.20-$3.00/unit at 300 pcs; $0.80-$1.80 at 2,000+ pcs.
Soft fabric roll (6-8 slots): $2.00-$4.50/unit at 300 pcs; $1.30-$2.80 at 2,000+ pcs.
EVA hard-shell case with CNC foam interior: $4.50-$8.50/unit at 300 pcs; $3.00-$5.50 at 2,000+ pcs. Includes custom compartment layout, travel-grade zipper, and logo hardware.
Tooling fees: EVA case mold: $500-$1,500 (injection) or $150-$400 (die-cut + heat press); CNC foam program: $150-$350; logo hardware mold: $200-$500.
Real-world case: Verena Osei founded Akosua Travels, a New York-based travel accessories brand, in March 2022 after a decade as a flight attendant — a background that shaped her product thesis: "I watched 12 years of passengers unpacking jewelry from Ziploc bags at hotel vanities. The category was screaming for a product." Her first product, a 7-slot soft roll, launched in June 2022 at $42 retail and sold 300 units in the first month — mostly to fellow flight attendants. By early 2024, the brand did approximately $180,000 annual revenue across two SKUs, but Verena noticed a pattern in 1,200+ reviews: 8.5% mentioned "tangles" despite the individual slots, and 5% said the roll offered no checked-bag protection. One review was blunt: "The roll is beautiful and my necklaces still arrived as one giant knot. I’m back to Ziploc bags."
Verena tested solutions through mid-2024. Deepening the slots and adding a second elastic band per slot reduced tangle complaints to 6% but added $1.10 in cost and made the roll too bulky for carry-on pockets, generating 7% "too bulky" complaints. A leather-wrapped hard case with a generic foam insert solved both problems but priced out at $98 — $30 above her market-testing ceiling. In October 2024, she commissioned the Chinese manufacturer to build an EVA hard-shell case with a CNC-routed foam interior refined through 300 customer interviews: full-length necklace channel with elastic bands at 50 mm intervals, 8 ring slots, 6 earring wells at 18 mm depth, and a zippered mesh pocket. Tooling cost $1,800; per-unit cost at 1,000 units was $6.40 FOB. The first run shipped in January 2025 and sold out in nine weeks. Of the 214 reviews tracked: tangle complaints dropped to 1.4%, crush complaints to zero (one customer: the case survived a checked-bag trip "where the shampoo bottle next to it exploded and the case came out spotless"), and the case rated 4.9 versus 4.3 for the original roll. A third SKU — a 12-slot collector case — launched September 2025, with 2026 revenue projected at $410,000. Total development cost: ~$6,800. Incremental annual revenue from solving the two core complaints: ~$190,000. "The flight attendant in me knew the problem," Verena told a trade publication. "The entrepreneur in me had to learn the solution was an EVA shell, not a prettier roll."
Hard-shell or soft roll — which should my brand offer?
Offer both, but enter with the format that matches your price point. Soft rolls work for brands retailing $30-$60 where portability and price are the priorities. Hard cases work for brands retailing $70-$150 where protection and premium perception drive purchase. The two products serve different trips and different travelers — a frequent international flyer with fine jewelry needs both a hard case for checked luggage and a soft roll for a weekend carry-on. Brands that start with one format and add the second within 12-18 months capture the crossover demand. The development cost differential is significant (hard case tooling at $500-$1,800 vs. roll tooling near zero), which is why most brands launch with the roll and graduate to the case.
What is the minimum crush resistance for checked luggage?
Test to 30 kg of distributed stacking load — the weight of a typical loaded suitcase resting on another in a stacked luggage cart. EVA cases at 3-5 mm wall thickness pass this test; PP cases below 3 mm typically fail at 15-20 kg; soft rolls provide zero resistance (they compress flat, which is acceptable for costume jewelry but fatal for fine pieces). The crush test should be part of the pre-shipment inspection protocol: place the case under a 30 kg distributed weight for 2 hours and verify no permanent deformation exceeding 5% of case height and no interior damage to the foam architecture.
How many compartments do I need for a standard 6-8 piece jewelry collection?
The minimum usable architecture for a mixed collection is: 1 necklace channel (accommodates 2-3 necklaces if the channel is full-length with multiple elastic bands), 4 ring slots, 2 earring wells, and 1 mesh pocket (for 1-2 bracelets or loose pieces). This is the 8-compartment standard that dominates the market. For collectors and frequent travelers, the 12-compartment architecture (2 channels, 8 ring slots, 4 earring wells, 2 pockets) is the premium tier. Beyond 12 compartments, cases become too large for carry-on compatibility and the marginal utility of additional compartments declines sharply.
Can travel packaging be branded for resale?
Yes, and it is one of the highest-margin customization opportunities in the packaging industry. Travel cases carry branding on three surfaces: the exterior (logo plate, embossed or debossed monogram, printed logo on the shell), the interior (embroidery on the lining, printed brand label), and the closure hardware (custom logo zipper pull, engraved clasp). Exterior logo plates ($0.30-0.80/unit) and interior embroidery ($0.40-1.00/unit) are the two highest-impact options. For corporate gifting, travel cases are a premium promotional item — they combine the perceived value of a leather accessory with the practical utility of a travel tool, and corporate buyers order in 200-1,000 unit volumes at 30-50% margin above standard retail pricing.
What is the most common quality defect in travel packaging orders?
Zipper failure — specifically, zipper track separation after 200-400 cycles, far below the rated 10,000. The root cause is almost always component substitution: the supplier quotes a YKK-grade zipper but installs a budget zipper at production, relying on the inspector (or buyer) to never test cycle count. The preventive measure is specification enforcement: require the zipper brand and model number in the spec document, perform a 500-cycle zipper test on pre-shipment inspection samples (a 20-minute mechanical test), and reject any case whose zipper shows track separation, tooth skipping, or pull detachment. This single test catches the most expensive latent defect in the category.
Travel and portable jewelry packaging is the category where retail presentation logic inverts: durability outranks drama, weight beats heft, and impact resistance replaces unboxing sequence. The engineering pillars are shell construction (EVA at 3-5 mm for the premium segment, with 30 kg crush resistance verified by testing), interior compartment architecture (necklace channels with elastic retention, ring slots, deep earring wells, and zippered mesh pockets, all with minimum 2 mm walls), and travel-grade closures (10,000+ cycle zippers, reinforced hinges, tested under all orientations). The commercial case is proven — Akosua Travels' EVA hard case, developed at a tooling cost of $6,800, generated an estimated $190,000 in incremental annual revenue by solving the tangle and protection complaints that its soft roll could not address. For brands entering the travel packaging segment, the sequence is clear: verify the compartment architecture against the real jewelry collection, test the shell against real luggage loads, and enforce the zipper specification at inspection. For tailored specifications and production-ready quoting, visit Utouch Packaging or browse the storefront of Xiamen Yu Touch Imp & Exp Co., Ltd..
